China fish feed machine manufacturer, the simply introduction:

1. Pet food machine or animal material intended for consumption by dogs or other canines. The pet food is close to the human beings food in the fine level, the health index and the nutritional ingredients, some of them request more highly than human beings.

2. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.Animal food is dried in a multipass dryer until its moisture content is low enough to make it shelf stable. Animal food may pass through a coating drum where animal fat and vitamins are applied onto animal food.

Pet food processing line Configuration:

1. Fish feed machine raw material mixer.
2. Screw Conveyor
3. Fish feed machine
4. Belt Conveyor(Air Conveyor)
5. Roasting Oven(Fryer Machine)
6. Flavoring Machine
7. Cooling Machine
8. Packing machine
9. Configurations can be increased or decreased as per customer's request.

The processing line is in reasonable design,high automation, stable performance, easy to operate, durable usage, high production effciency.

Main Features

1. Our processing line adopt international advanced technology, the pellets size are very even.
2. we can adjust the cutter speed and the dies to get the different diameter and the length product
3. The Electric heating device system can control the temperature accurately
4. High temperature and high pressure can kill the salmonellosis andbacterial infections.
5. This line can produce high-protein fish feed.
6. The processing line can produce both floating and sinking fish feed.

7. This line only need three workers

Machine Parts

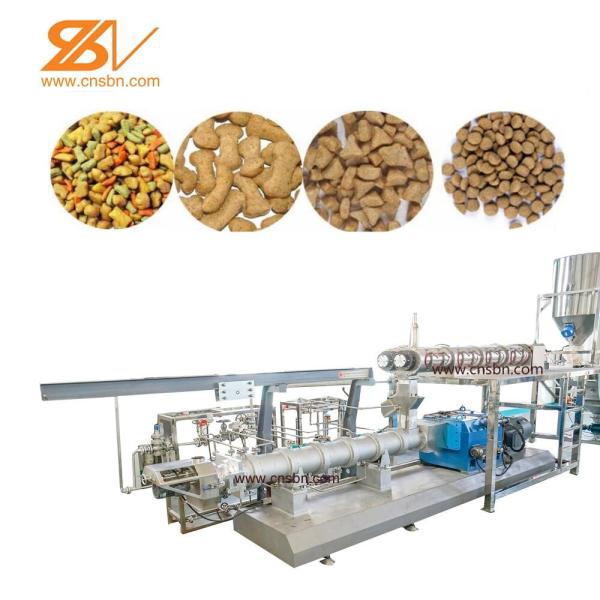

Name: SLG95 Extruder

Brand: SBN

Original: China

The Twin-screw extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system. We will feed the material from the feeding machine and get the tissue state by inflating the material and the machine barrel must be high temperature, high pressure and high cutting. The material can be sterilized by the high temperature and high pressure and make the product safe.

Main Features

Name: Dryer oven
Brand: SBN
Original: China
1. The multi-layer dryer can be classified in to the electricity, fuel oil heating according to the different heating way.
2. It can be used to bake and dry the food. The dryer can bake all kinds of the inflating food, pet food, tissue protein, peanut and so on.
3. Seven-layer dryer has the compact structure, small occupying, large drying area, small surface area, slight radiating heat and high thermal efficiency
The belt and the heat preservation use the stainless steel, it is very clean

The net belt running speed can be controlled and change the food drying time in the dryer; The temperature can be controlled willfully and designed according to the need.

Machine Parts

Name: Roller
Brand: SBN
Original: China
The two-section and the high-low roller, which sprays the oil from the feeding end of the roller then sprays the flavoring on the surface and separate the oil from the material is suitable for the high-quality products.

Main Features

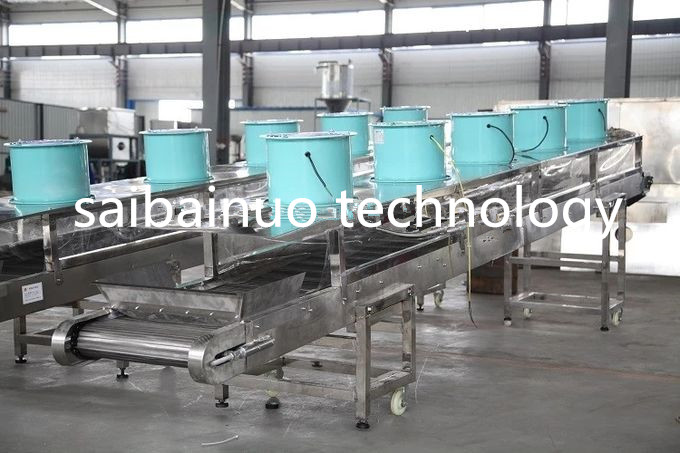

Name: Cooling conveyor
Brand: SBN
Original: Germany
1.It is mainly for product after extruder, it can conveyor the product to the Oven.
2.Cool it down during the conveying
