Jinan Saibainuo Technology Development Co., Ltd
7 Years
| Ask Lasest Price | |
| Brand Name : | SBN |
| Model Number : | SLG65/SLG70/SLG85/SLG95/SLG120 |
| Certification : | CE SGS BV |
| Price : | USD 1000-USD 100000 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10 sets/month |
| Delivery Time : | 40-60 days |
(1) The pet food making machine is researched and developed by
Jinan Saibainuo Machinery Company based on the foreign advanced
technology.This processing line is suitable for the pet food, dog
food, cat food and fish feed and shrimp food.
(2) The pet food making machine produce the pet food used of meat,
cereals, grain, vitamins and minerals. The general grains, such as
soya bean meal, corn meal, cracked wheat, and barley, are often
used to improve the consistency of the products.
2. Raw Materials: adopts corn flour, fish meal as raw materials.
3. Products: different shapes are made by adjusting the dies from extruder
4. Capacity: 150kg/h, 250kg/h, 500kg/h, 1ton/h
5. Flow chart:
Mixing system---Extrusion system---Drying system---Flavoring
system---Packing system
6. Voltage: In China: Three phases: 380V/50Hz, we can make it according to customers' Local voltage according to different countries.
7. Machines materials:
All the machines are made by stainless steel, this line is with
reasonable design and with
high automation; the screws are made by alloy steel, with building
block system structure and
self-cleaning function.
8. Specification:

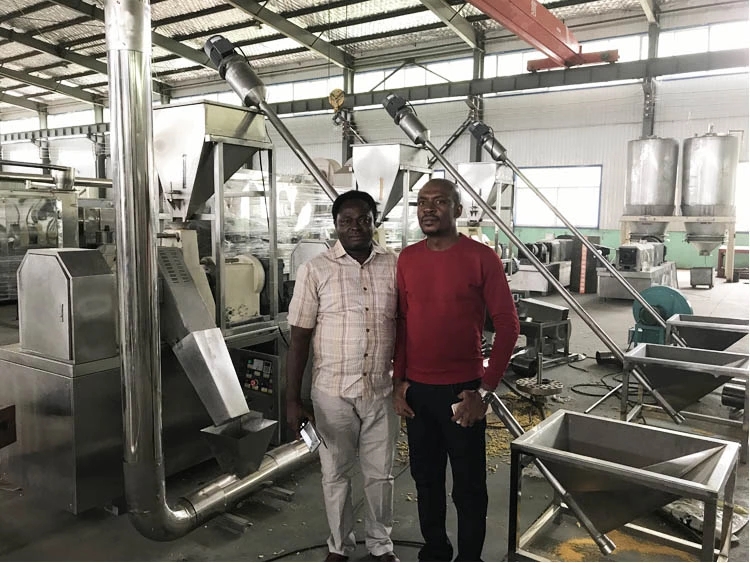

Customer come to our factory to inspect the machines.
The inside structure of our twin screw extruder.
Our gas dryer.

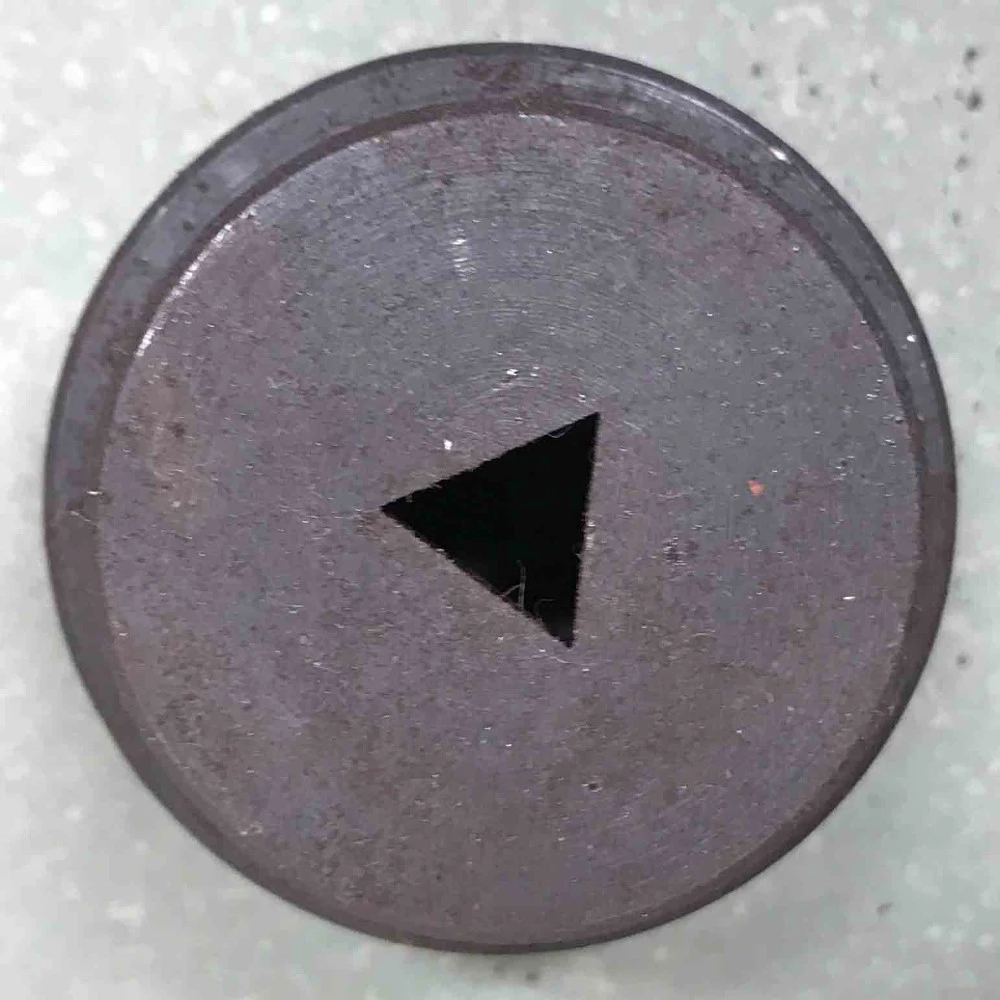

Our pet food mould.
Dimension(m): 1.1×0.8×1.4
Motor Power: 3KW
Speed: 400rpm
Throughput: 20kg per loading (5-6 minutes per loading)
Functions:
Mix powder raw material with water
Features:
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.
Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the
feed machine of extruder without leaking, dust and pollution; feed
quantity is even and stable.
Features:
stainless steel material
Dimension(m): 2.6×1.0×1.3
Total power: 37kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:10kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the hardness
is
60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different moulds to produce different
Shapes product.
Dimension(m): 1.1×0.6×0.5
Motor Power: 1.1KW
Functions:
1. conveys the food by the wind-force from the blower.
2. suitable for long distance conveying
Features:
Low energy-consumption, high efficiency.
It use high pressure blower to send food, It is more effective than
normal pressure blower.
Dimension(m): 5.4×1.3×1.8
Motor power:0.75kw
Heating powder: 27kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Three layers inside,each layer is 5 meters long, it can
save space and energy. Electricity heating,used to bake and dry
food.
Features:
The net belt running speed can be controlled by Inverter, to change
the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel
Dimension(m): 3.8×0.8×1.8
Motor Power: 1.5KW
Function:
Scatter the powder seasoning on the food, The roller will mix the
fat and seasoning powder evenly. Make food nice taste.
Feature:
Stainless steel material(1.5mm thickness)
Dimension(m): 5.0×0.7×1.1
Power: 1.0KW
Function:
There are five fans on the top of the belt, they blow the food to
make the temperature reduce to suitable for packing
Feature:
Stainless steel material
Before sale services:
1). Provide the free consultation of the equipment.
2). Provide the standard device and the flow chart.
3). According to the clients' special requirement, offering the
reasonable plan and free design helping to select the equipment.
Services during the sales:
1). Help client design the factory and offering professional
advice, free engineering drawing for the factory layout.
2). Welcome to visit our factory or the domestic clients' factory.
3). Inspect the machine before leaving the factory.
After sale services:
1). Oversea install and debug the equipment.
2). Train the first-line operator.
3). Provide the basic formula.
Packaging & Shipping:
1). Packaging: daub coal oil on the surface to protect the machine
from moisture, Then cover with plastic film.Finaly pack them with
wooden case.
2) Customer's requirement is available.
3). If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
|
|
