Stainless Steel Fish Feed Pellet Making Machine Fish feed Extruder
This fish feed pellet production line mainly consists of the following parts: mixer, feed extruder, dryer, seasoning machine, and packing machine. Each machine has multiple models with different outputs. We can provide you with solutions according to your needs, and provide you with a perfect fish feed production line.
2.Fish feed pellet production line process flow:
Raw material preparation→Mixing raw material→Conveying→Extrusion→Conveying→Drying→Screening→Oil spraying→Flavoring→Packing
3.Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’local voltage according to different countries.
4.Machines Materials:
All the machines are made by stainless steel 304.
High quality ingredients (fish meal, cereals, vegetable proteins …) are selected and ground according to the specific nutritional and pellets size requirements of the aquatic animals and various fish request.
The particle quantity of fish feed raw material is a key factor for
premium granulates production : therefore the grinding step is an
important unit operation. The powder is then mixed with minor
ingredients such as vitamins, mineral premixes… prior to the
preconditioning to the fish extruder directly.
Next,the heart of the process, extrusion cooking is done in three stages in the fish feed machine : preconditioning, extrusion cooking and die texturing/ shaping. Twin-screw extrusion-cooking uses its perfect mixing ability and parameters control such as shear, temperature, residence time to reach the highest physical and nutritional standards. Through direct steam injection,venting device and efficient barrel cooling, adjustable screw speed, screw configuration, shear and temperature conditions are perfectly controlled ; this leads to optimized functional and nutritional pellet properties such as the bulk density, calibration,cooking degree, best ratio proteins- lipids, etc.
Fish feed Pellets can then be oil coated and possible additives and
are cooled down to complete the fish feed processing.
5.Food Equipment:
Mixer---double-screw extruder---air conveyer---roasting oven---automatic flavoring machine
6.Working process:
Put raw materials into feeder, they will be pressed by the screw
with high pressure and
temperature which makes the raw material fully cooked and
sterilized. Then the pressed
materials will be formed into pellets by shaping mould.It can make
different size and
shapes pellets by changing molds. Last the cutter device cut the
formed pellets into
different length as required.
6.Sample
7.Details

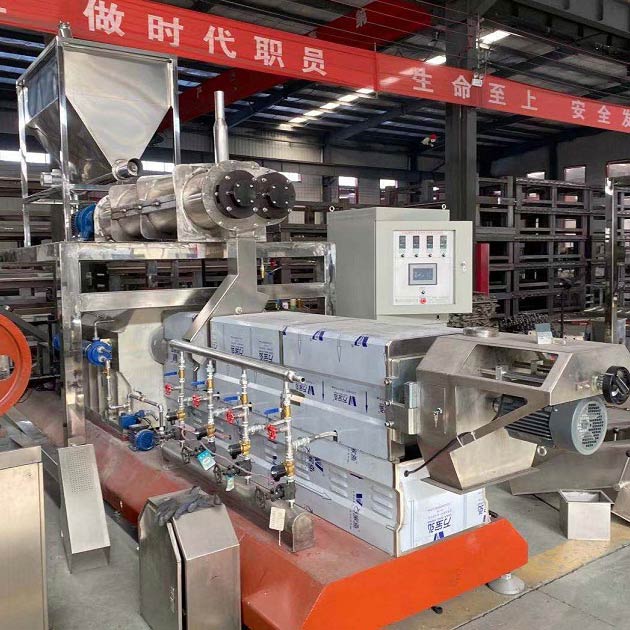

Extruder
Large capacity floating fish feed extruder,which is widely used in
puffing food, medicine and food industry.
It can carry out best parameterenactment according to different
recipe, water,pressure and temperature, The barrel is heated
by steam.

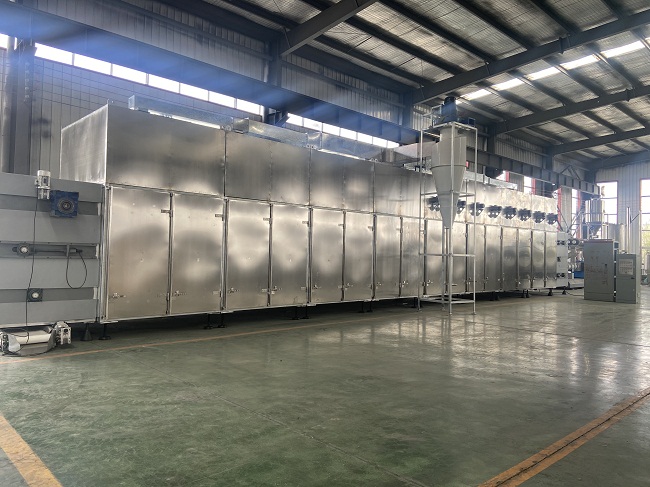

Oven
The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system,conmbustion system, dehumidifier system, sheet metal insulation system and controlling system.
8.Mould
These are some molds for pet food, we can change them according to the needs of customers.
9.Our srvice
Saibainuo Company before sales service :
a.) We provide you the suitable solution,which is useful and convenient
b.) We produced the product you need in our factory,you can buy it without any hesitate.
c.) We provide you the factory design and processing line layout and also design for water and electric and gas etc.
d.) With much experienced technical team,we can meet customer personalized requirement,produce the customized machine for you
Saibainuo Company after sales service :
a.) Consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to named place by buyer;
e.) Training of equipment maintenance and operating personally;
d.) New production techniques and formulas;
g.) Provide 1 year complete warranty and life-time maintenance service.
10.Our company
Saibainuo is a leading manufacturer of high quality Twin Screw Extruders for food industries.
We have almost ten years’ experience of working with our customers providing specialist designs
and practical solution for a wide range of process needs.
Factory standing area:30000 square meters
Workshop standing area:20000 square meters
Office area:4 floor with 600 square meters.
|
|
